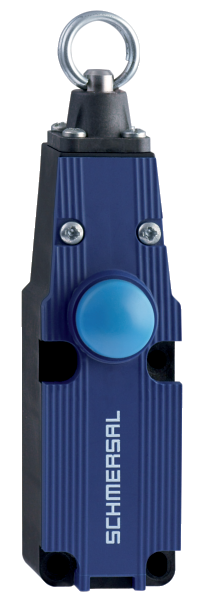

ZQ700-11拉绳开关
拉绳开关
• 热塑外壳
• 释放按钮
• 位置指示
• 大配线室
• 不允许挂钩扭曲
• 1 电缆进口 M 20 x 1.5
• 电线张紧和断线检测
• 线缆最长到10m的张力
• 单向操作/线长最大10 m
数据
订货数据
产品描述 ZQ 700-11
商品编号(订购编号) 101192476
EAN (European Article Number) 4030661352664
eCl@ss number, Version 9.0 27-37-12-01

认证
证书 TÜV
EAC

总体数据
产品名称 ZQ 700
标准 IEC/EN 60947-5-1
EN ISO 13850
IEC/EN 60947-5-5
外壳材料 玻璃纤维,热塑塑料
触点材料,电气
盖子材料 玻璃纤维,热塑塑料
线长,最大 10 m
重量 215 g

总体数据 - 产品特性
Number of auxiliary contacts
Number of safety contacts

安全评估
标准 ISO 13849-1
Mission Time 20 Year(s)

安全评估 - 安全输出
B10d 常闭触点(NC) 100,000 操作

机械参数
机械寿命,最少 1,000,000 操作

Mechanical data - Connection technique
终端连接器 螺栓连接
线缆截面,最小 0.75 mm²
电缆截面,最大 2.5 mm²
  所有的电缆截面表示包括了导线和线耳

机械参数 - 尺寸
宽度 40.5 mm
高度 160 mm
深度 50.9 mm

环境条件
防护等级 IP 67 依据IEC/EN 60529
环境温度,最小 -25 °C
环境温度,最大 +70 °C
最大相对湿度 95 %

Ambient conditions - Insulation value
额定冲击耐受电压 6 kV

电气参数
热测试电流 10 A
应用类别 AC-15 230 VAC
应用类别 AC-15 4 A
应用类别 DC-13 24 VDC
应用类别 DC-13 4 A
开关元件 NO触点,NC触点
开关原理 弹簧开关元件

Notes
Note (General) Recommended cable lengths for pull-wire Emergency-Stop switches in relation to the range of ambient temperature.
As the thimbles are subject to deformation in case of wire pull, the wire should be pulled several times after fitting. After that, the wire must be re-tensioned using the eyebolt or the tensioner.
At 2 m ... 5 m distance intermediate wire supports are required, see accessories
